Tube Clamp Coupler (LCL Series)

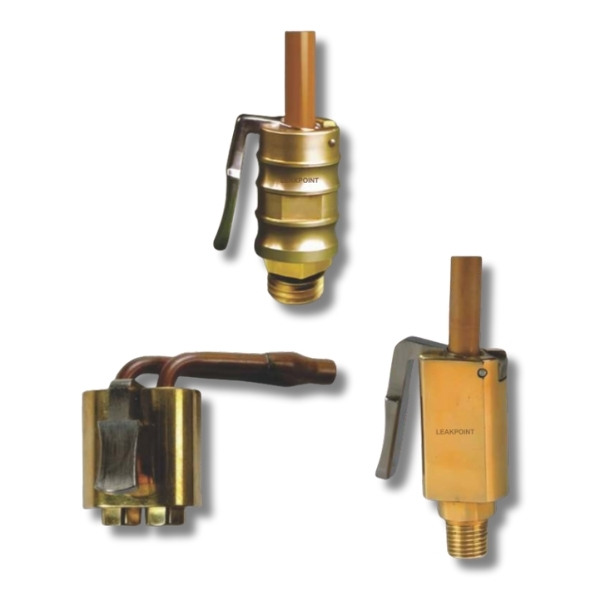

LCL Series Tube Clamp Coupler makes your work faster and simpler. A simple thumb press is required to clamp onto copper or aluminum tubes—no brazing, no problem. Designed for large-volume production applications, particularly for heat exchangers and refrigeration compressors, it is ideal for water dip testing, leak detection, and pressure tests.
It has a strong design that reduces operator effort, accelerates cycle times, and ensures leak-tight performance consistent with each use. Constructed from rugged brass Alloy, the LCL coupler is your intelligent solution for reliable, high-speed clamping.
Product Features
- Effortlessly clamps onto copper and aluminum straight tubes with a simple thumb press.
- Removes the need for brazing, streamlining operations and saving time.
- LCL couplers optimize cycle times, boosting production efficiency while reducing operator strain.
- Perfectly suited for water dip testing in heat exchanger coils, ensuring reliable results.
- Designed for applications such as filling, pressure checks, and leak detection.
Working
- The LCL series offers a straightforward and highly effective solution for pipe clamping.
- Just insert the pipe and secure it with a push of the latch. This tool is particularly favoured by refrigerant compressor and heat exchanger manufacturers dealing with high-volume production.
- Its innovative design cuts down cycle times, accelerates production, and reduces operator fatigue, ensuring smooth and efficient workflows.
| Specification | Details |
|---|---|
| MOC | Alloy, Brass, Stainless Steel |
| Thread Size | 1/4", 3/8", ', 1/2" |
| Working Pressure | 30 kg/cm2 |
| Pressure Resistance | 40 kg/cm2 |
| Suitable Fluid | R134a, R22, R407, R410a |
| Seals Material | HNBR, FKM, NBR, CR |
| Model | Pipe OD (mm) | Pipe OD (Inches) |
|---|---|---|
| LCL 318 | 3.17 | 1/8 |
| LCL 400 | 400 | - |
| LCL 476 | 476 | 3/16 |
| LCL 600 | 600 | - |
| LCL 635 | 635 | 1/4 |
| LCL 800 | 800 | 5/16 |
| LCL 952 | 9.52 | 3/8 |
| LCL 1000 | 10.00 | - |
| LCL 1112 | 11.12 | - |
| LCL 1200 | 1200 | - |
| LCL 1272 | 1272 | - |
| LCL 1430 | 1428 | 5/8 |
| LCL 1587 | 1587 | 5/8 |
| LCL 1905 | 19.05 | 3/4 |
| LCL 2200 | 22.22 | 718 |
| LCL 2540 | 2540 | 1 |
| LCL 3800 | 38.00 | 1 1/2 |
| SI. No | Particulars | MOC | Qty |
|---|---|---|---|
| 1 | Latch | Stainless Steel | 1 |
| 2 | Dowel Pin | Stainless Steel | 1 |
| 3 | Latch Spring | Stainless Steel | 1 |
| 4 | Seal | FKM / HNBR | 1 |
| 5 | Piston | Alloy Brass | 1 |
| 6 | O-Ring | FKM / HNBR | 1 |
| 7 | Spring | Stainless Steel | 1 |
| 8 | Housing | Alloy Brass | 1 |
| 9 | O-Ring | FKM / HNBR | 1 |
| 10 | Dummy Nut | Alloy Brass | 1 |
| 11 | Male Connector 1/2", 3/8", 1/4" | Alloy Brass | 1 |
| 12 | Female Connector 1/2", 3/8", 1/4" | Alloy Brass | 1 |
